High Pressure Pump for Cold Water. For use with the Bristle Blaster Subsea.
This electrical unit provides reliability combined with a long service life. Several hundred hours of reliability and service life per year is very important. All components used are designed for a long service life.
For example, the pumps operate with very little wear thanks to the low-speed crankshaft principle of 1450 rpm.
The Monti Cleantech Subsea Bristle Blaster offers a complete surface preparation package for all your underwater and splash zone surface preparation work.
One of the first hand-held surface profiling tools to create an anchor profile underwater, it delivers a surface which is dense, regular and angular, ready for the mechanical bonding of protective materials.
This technology features a powerful and servable water motor that enables a clean and powerful source to drive the unit. It is sustainable and environmental friendly.
The tool applies Monti’s patented Bristle Blaster technology which is capable of generating a cleanliness grade comparable with SA 2.5 – 3 per ISO 8501-1 without the use of loose abrasives.
- Removes corrosion, coatings, scale and adhesive residues underwater and in the splash zone
- Minimal loss of base material
- Roughness level up to 120 µm Rz in the splash zone and up to 50 µm Rz subsea
- Surface preparation grade comparable with SA 2.5 – 3 (ISO 8501-1)
- Torque and speed adjustable with high-pressure unit

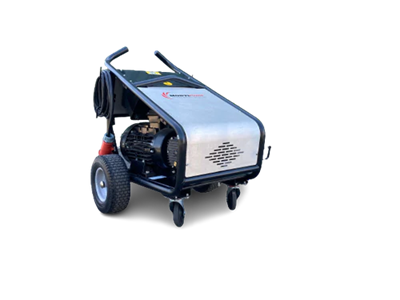

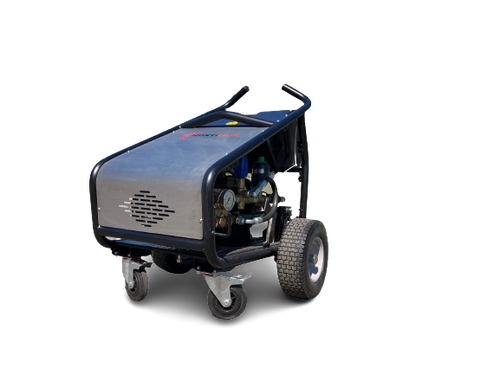

MontiPower TS 21/250 Professional High Pressure Pump for Cold Water Features:
- Pressure relief valve with bypass extreme
- Flexible motor-pump coupling

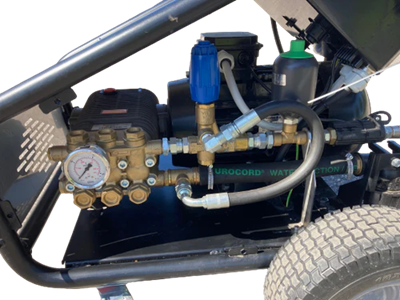

- Premium pumps with three built-in ceramic pistons and brass pump head
- High-performance filter cartridge with self-priming filter
- Pressure gauge in stainless steel housing
- 4-pole motor 50Hz (1400 U / min), generously dimensioned and with special coating
- High-pressure valve with external bypass
- Flexible motor-pump coupling
- Low voltage control panel
- Protection against overheating
- Motor with thermal protection
- A flow switch for no-water control
All subsea equipment and underwater tools to power the subsea unit and deliver underwater surface preparation results are available separately, including:
- Bristle Blaster Belts, Subsea. 4 Caged Belts (BB-500-04)
- Bristle Blaster Belts, Subsea. 8 Caged Belts (BB-500-08)
- 1/2" Neutrally Buoyant High Pressure Hose (W.P. 390 bar) - 50 mtr
- ARF070 Nipple M24 700 Bar G1/2M
- GR200 Vacuum Adapter set for debris transportation (Max. tool diameter 160mm)
- MontiPower TS 21/150 professional High Pressure Pump for cold water (HPCT 250-21)
- ARF70 3P M24 Quick connect couple G1/4M S/S - W.P. 700 bar
- 1/2" Rubber High Pressure Hose (W.P. 440 bar) - 25 mtr
- Waterhydraulic Propeller Polisher with Vacuum Adapter for debris transportation (PP200T1)
- 1/2" Rubber High Pressure Hose (W.P. 440 bar) - 50 mtr
- Electrical High Pressure Unit - 44lpm @ 400Bar. Frequency Controlled (HDE30-400-37PRO)
- Connector plate Subsea tools
- Subsea ToolHose 2m 1/4"
- MONTI Easy-lock 23mm
- MONTI Easy-lock double (36307)
- 1 /2″ Neutrally Buoyant High Pressure Hose (W.P. 390 bar) – 30 mtr
- Electric water supply pump set 230V (with 10 meter 1 inch hose- GK-GK)
- MontiPower TS 30/280 professional high pressure pump for cold water (HDMP280_30)
- Waterhydraulic Underwater Grinder
- ROV Zero-thrust Cavitation Cleaning Lance (Max. 80 LPM at 300 bar)
- Short Cavitation Cleaning gun (Max. 90Nm)
- Zero-Thrust Long Cavitation Cleaning gun (Max. 40 LPM at 300 bar)
- Zero-Thrust Short Cavitation Cleaning gun (Recommended max. 40 LPM at 150 bar)
- Diesel High Pressure Unit- 31lpm @ 300Bar. (HPCT DFC 27.3/300)
