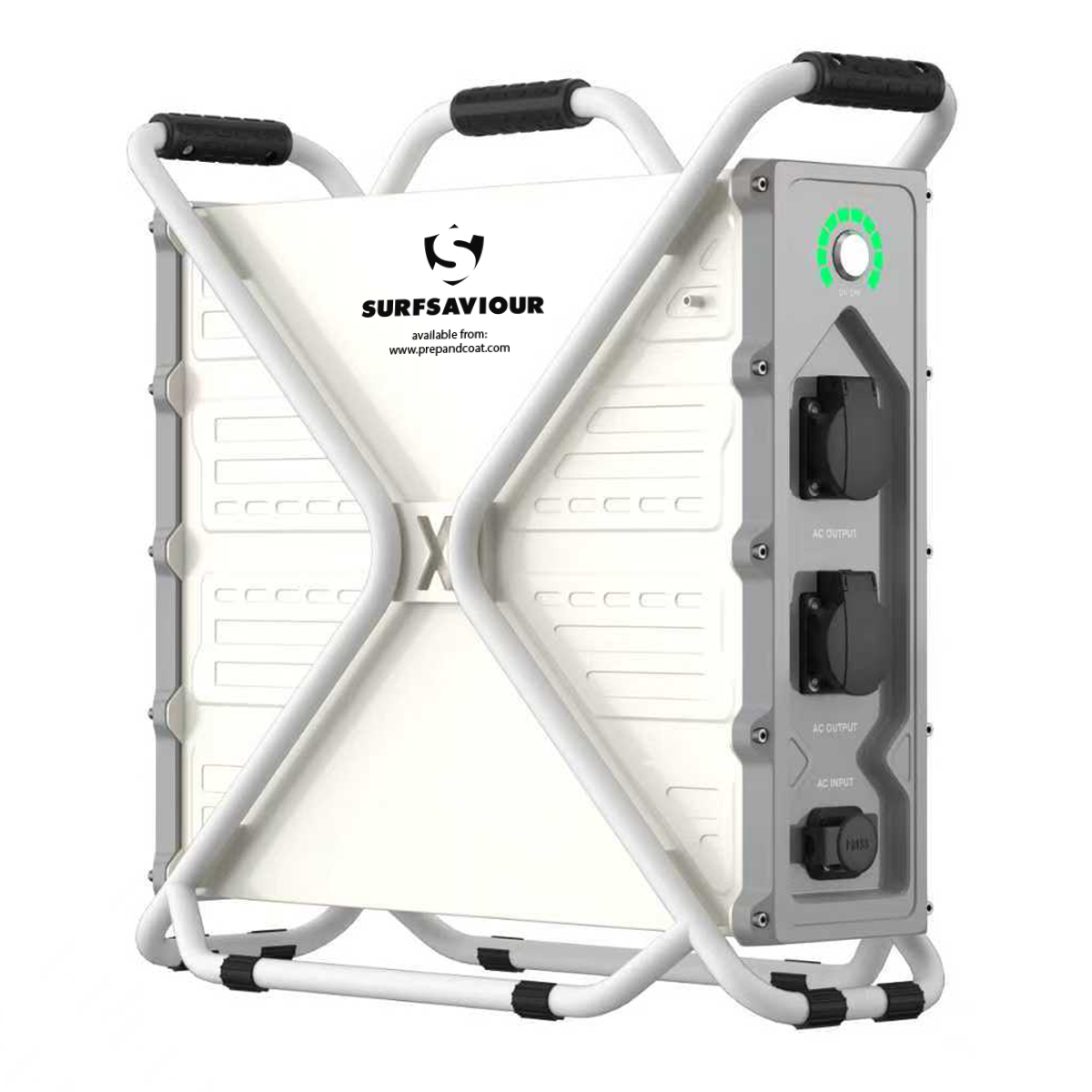

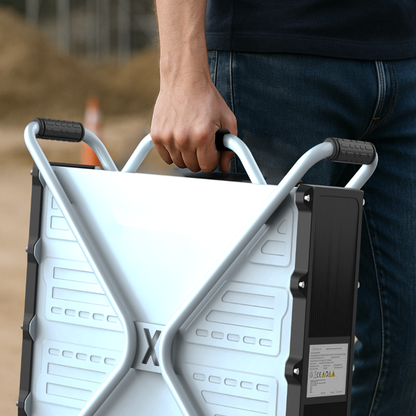

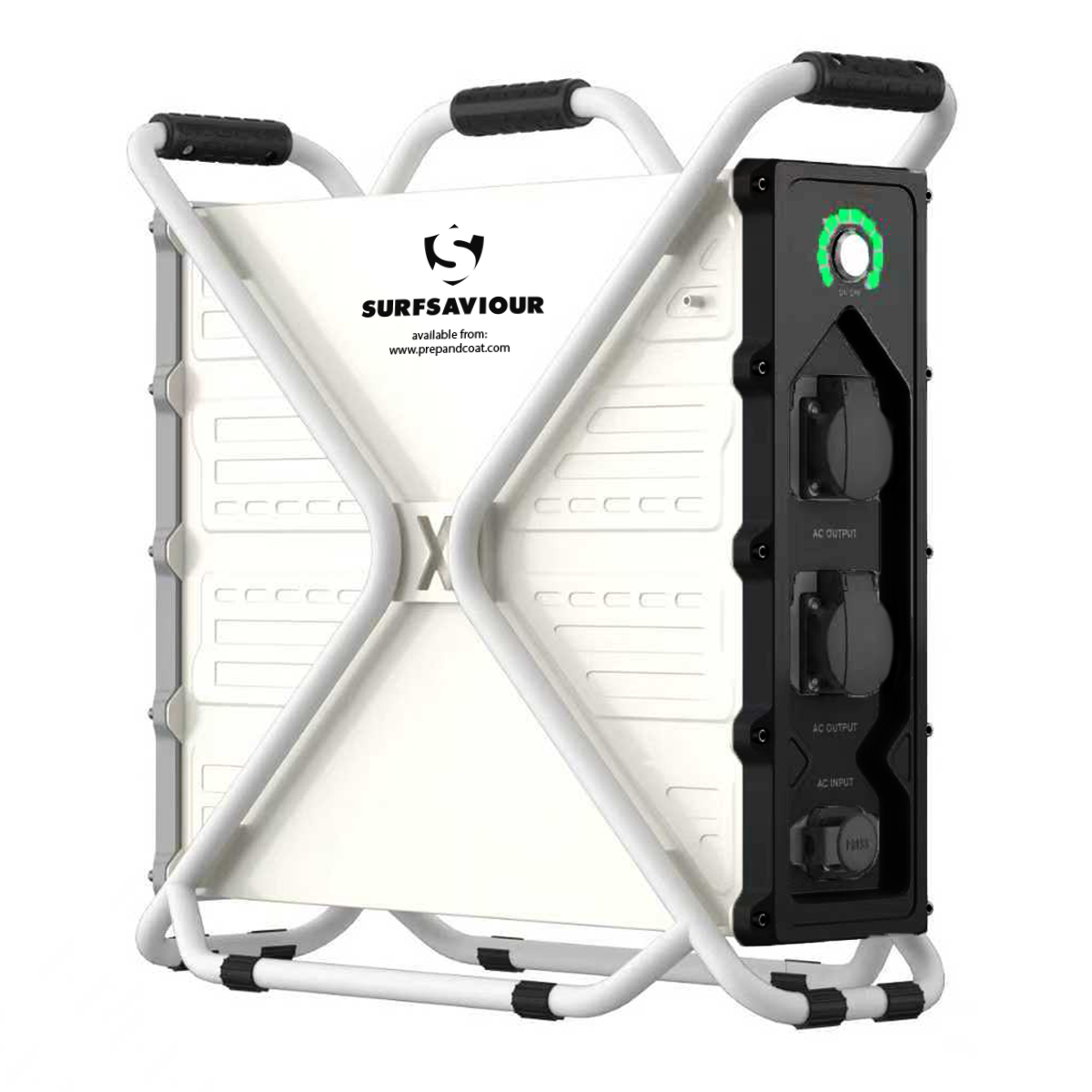

SurfSaviour 2304 Portable Power Unit – 230 V Compact Site Power Supply
SurfSaviour 2304 Portable Power Unit – 230 V Compact Site Power Supply
The SurfSaviour 2304 Portable Power Unit is a robust, compact 230 V power supply engineered for on‑site industrial, coating, and surface preparation work where mains access may be limited or temporary. Designed for ease of use and long‑lasting performance, this unit provides stable 230 V output to power a wide range of tools and equipment — making it ideal for workshops, construction sites, marine environments, and remote projects.

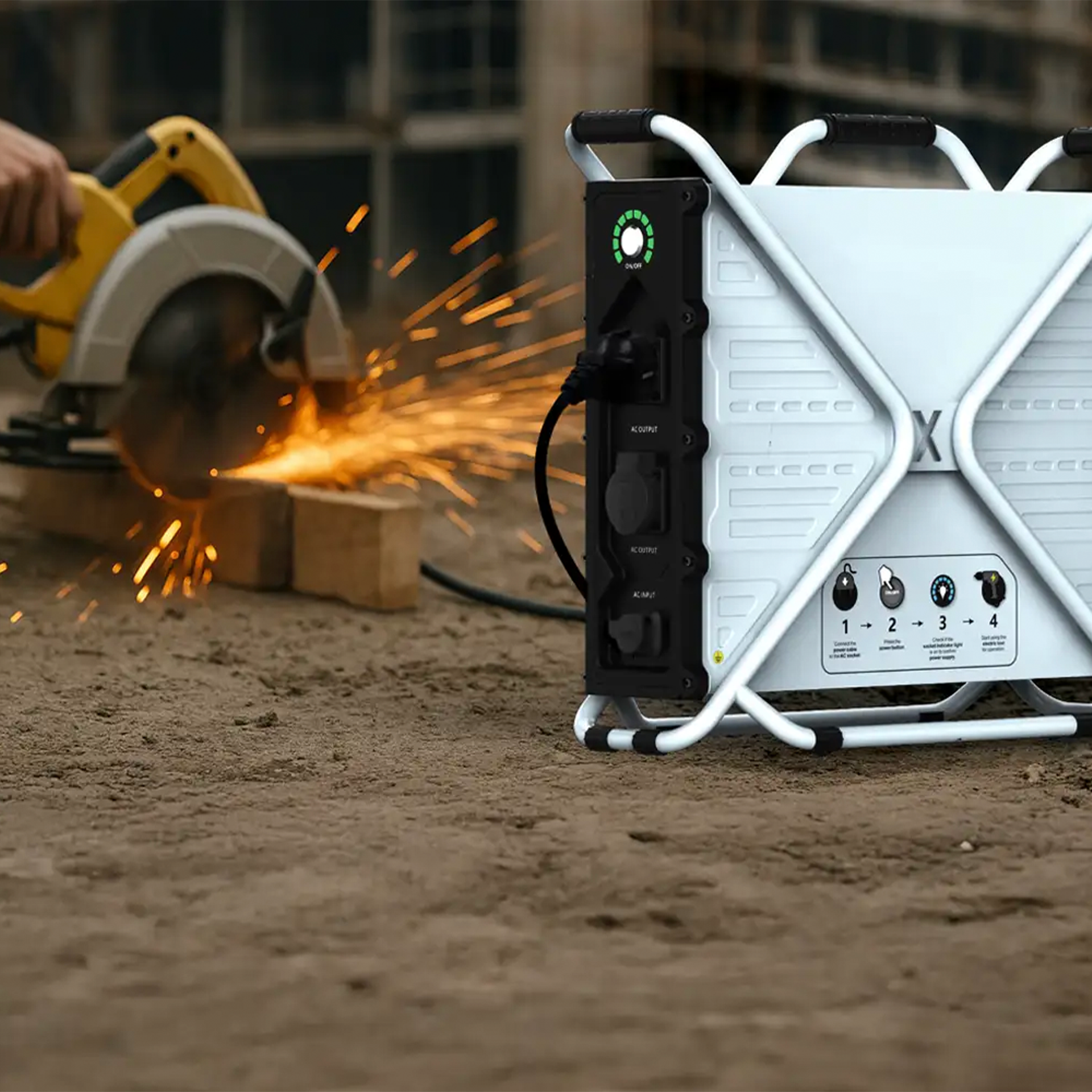

Built for professional applications, the SurfSaviour 2304 delivers reliable power to grinders, saws, lighting systems, surface prep tools, and more, with rugged construction that stands up to demanding working conditions.
Description
Description
20,000W Peak Power —
Maximum Performance
Self-developed high-performance power chip.
Plug & play—no learning curve, no complexity.
Supports heavy-load equipment & parallel connections.
Durable in harsh conditions, 30-year rust-proof.
Zero noise, zero maintenance.
Performance Benefits
Performance Benefits
High Power
Rated 3600W, peaks at 20,000W*
*Based on actual test data for loads such as welding machines and air compressors.
High Protection

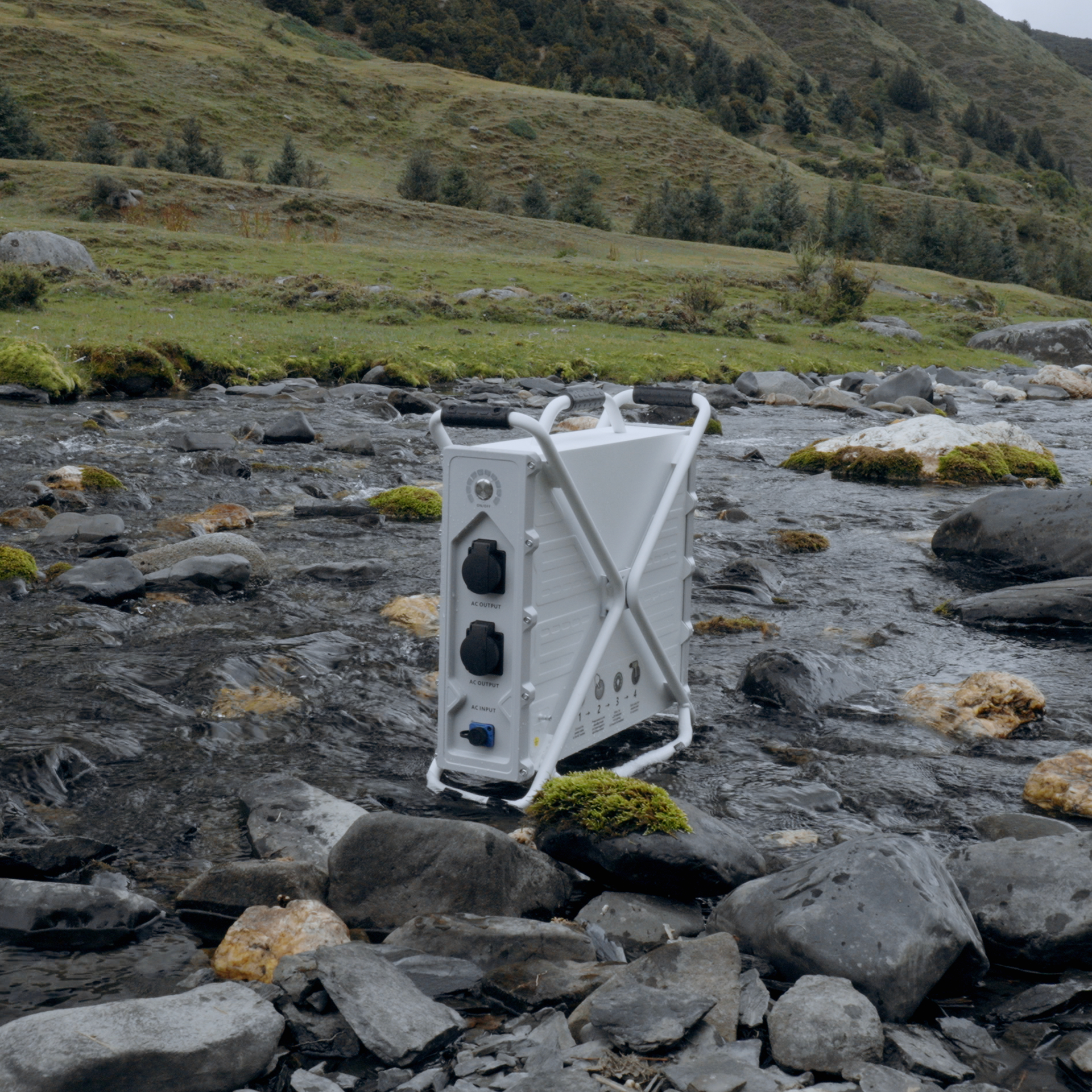

IP54 dust & water resistant.

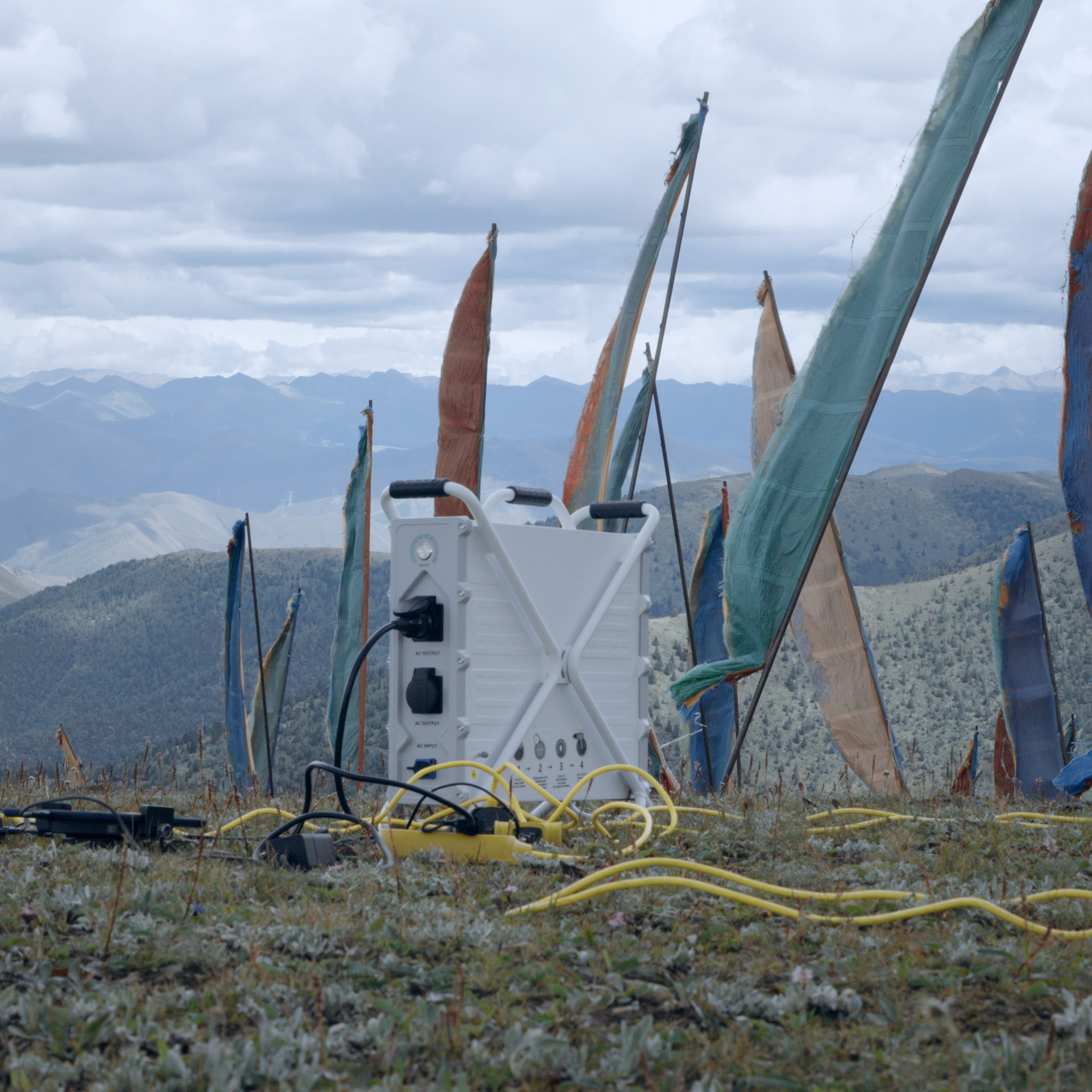

Thrives in heavy weather.

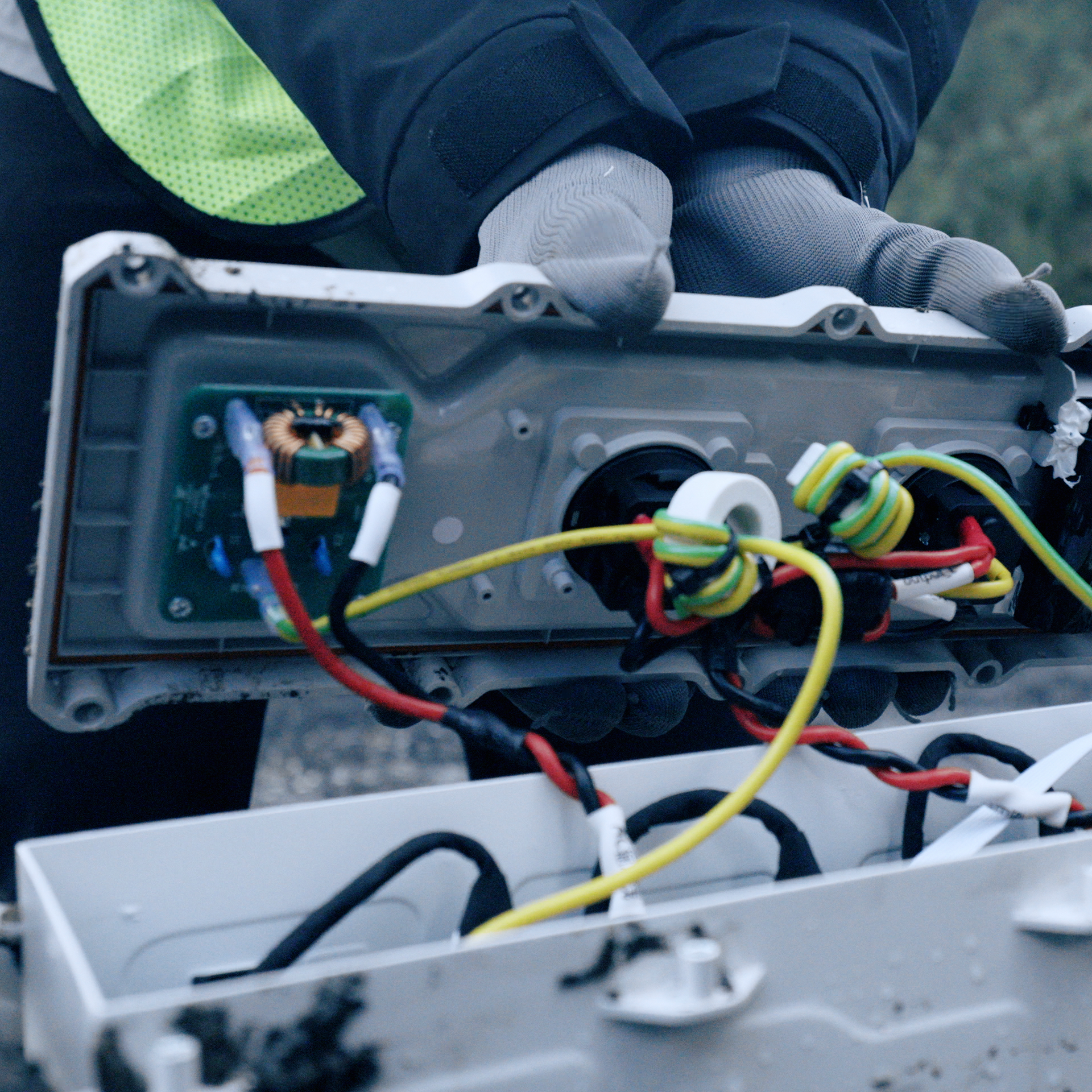

Laser-welded & sealed for waterproofing.

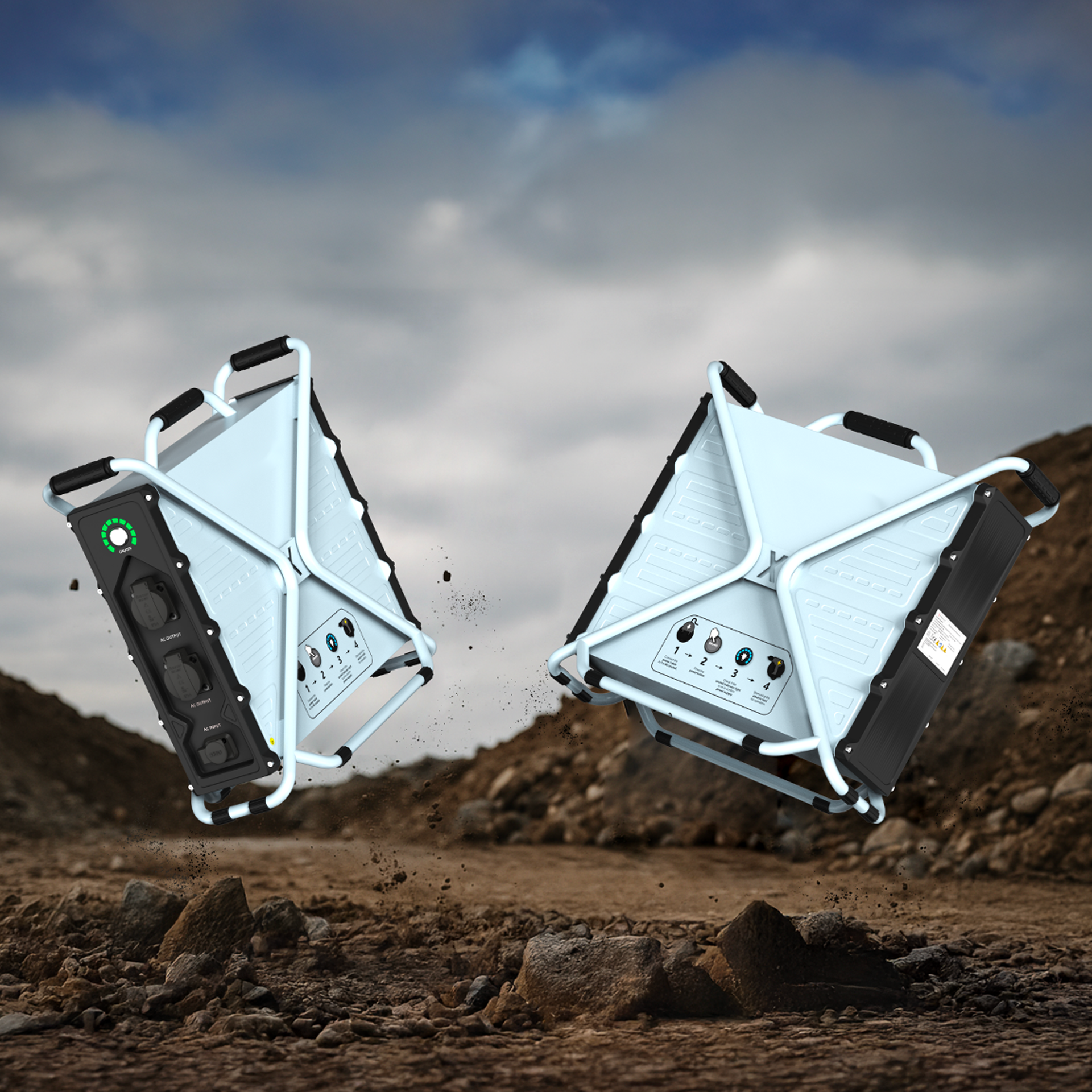

Shock & collision resistant.
Fast Charging
Plug in and go—fully charged in 2.3h.
Reach 90% charge in just 1.8h.
Light & Expandable

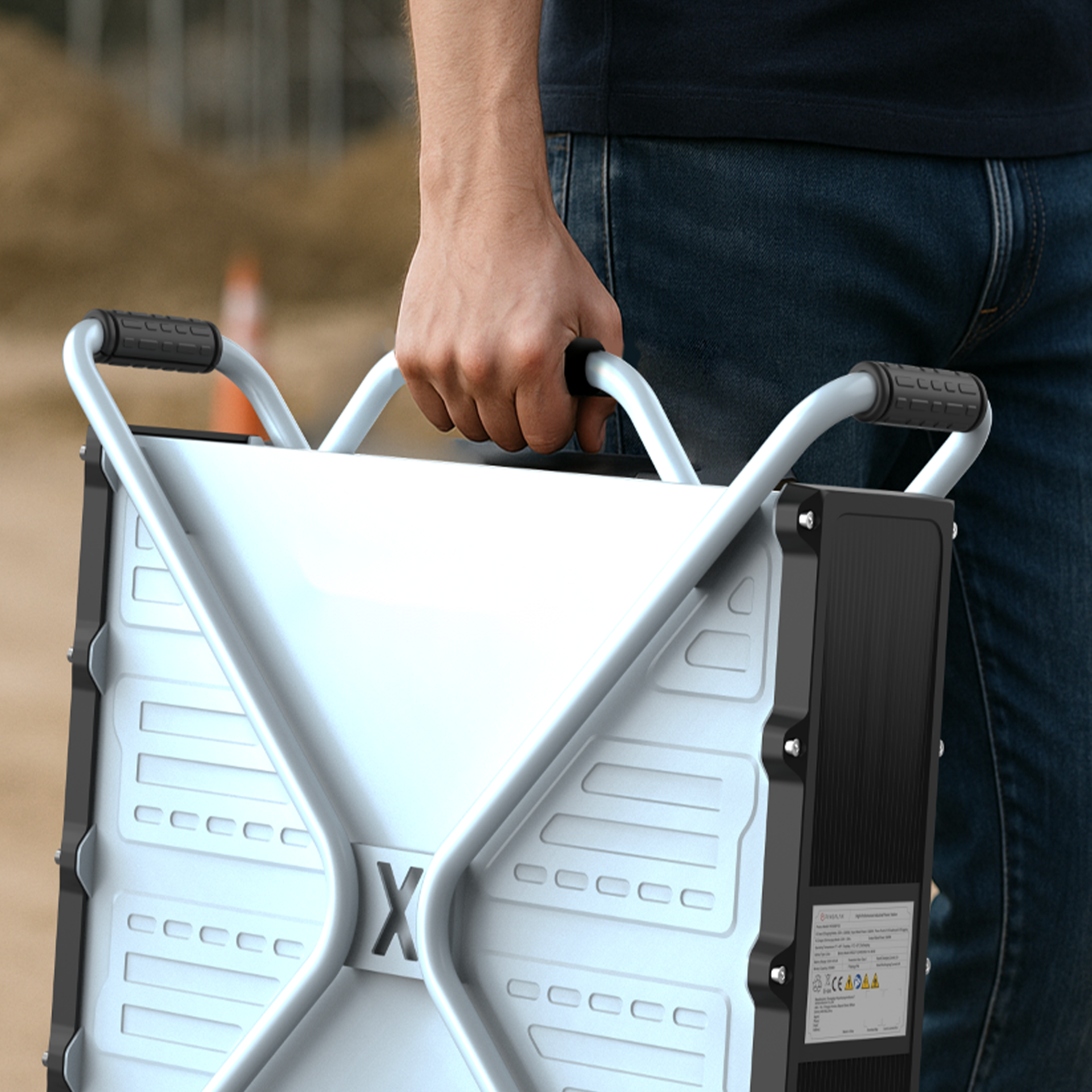

Weighs only 23.8 kg for easy lifting.
Supports up to 3 parallel expansions,
reaching a total capacity of 6912Wh.

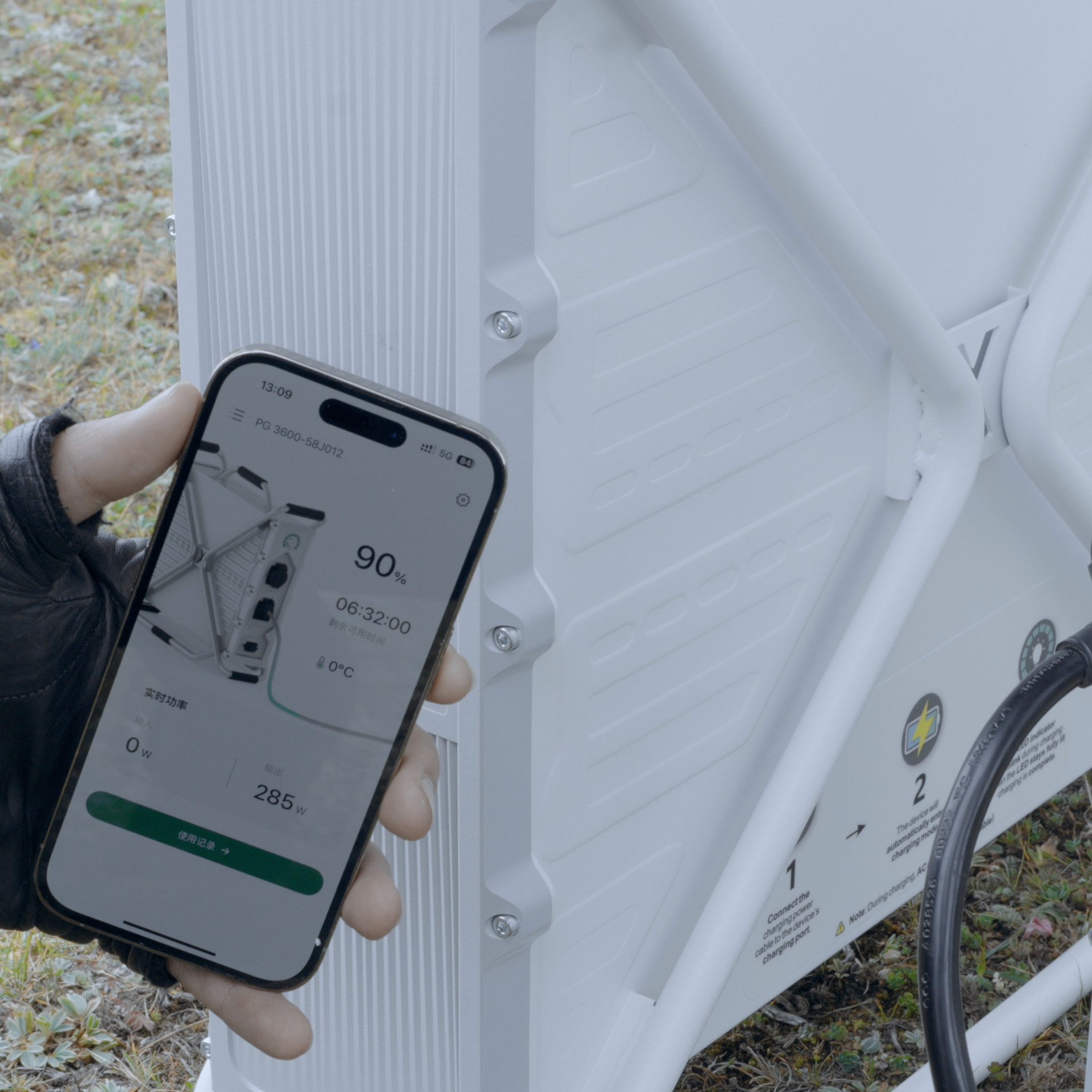

Digital Intelligent Monitoring App
Exclusively crafted for mobile power stations: an app with smart monitoring functionality. By connecting the stations via bluetooth, data management and parameter setting for mobile power stations can be achieved.
Real-time status monitoring
Collect and display real-time operating data such as input and output power, temperature, and electric quantity.
Fault alerts
Instant notifications for device abnormalities, push warning information including fault types and solutions.
Data dashboard
Get 100 historical charging/discharging records.
Remote settings
Support remote adjustment of charging power and other parameters to achieve non-contact management.
Product Specifications
Product Specifications
Product name
SS2304
Net weight
23.8kg
Size
494×502×198mm
Battery capacity
2304Wh
Protection level
IP54
Cooling method
Natural cooling
Indicator light
10-level indicator light
Standard
UN 38.3, IEC 62619, IEC 62477
Opertaing temperature charge
5-40℃,
Opertaing temperature discharge
-15℃-55℃
Storage temperature
-20-60℃
Operating humidity
10-90%RH
Storage humidity
10-90%RH
Operating altitude
2000m
Rated voltage (input)
220-240VAC
Input range
176~264 Vac
Maximum input power
1300W
Rated current
6A (max input current 8A)
Battery type
NCA 21700
Power conversion efficiency
>90%
Battery pack SOC
<5%
Output power
2x 220v Euro 2 pin connectors or 2 x 240v UK home plug
Rated voltage (output)
230, Pure sine wave
Voltage range (output)
220+5Vac
Frequency
50+0.5Hz
Rated power
3600W
150% overload
200% overload
250% overload
Other overload
No-load consumption
4000W~5400W>500s
5400W~7200W>50s
7200W~9000W>10s
>9000W>1s
<30W
